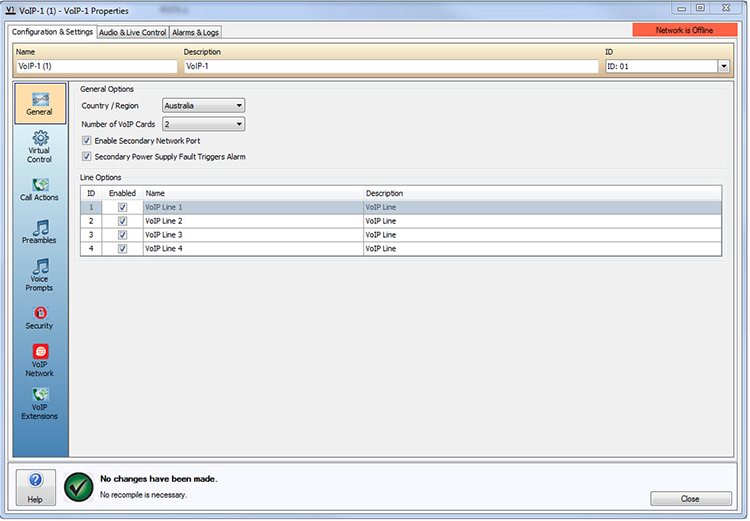

Country - used to select the country in which the system will be operating and to configure the local call progress tones accordingly.
Number of VoIP cards - the VoIP-1 comes in a one card (2 lines) or two cards (4 lines) configuration. This setting should match the physical hardware configuration being used. For more information refer to the hardware section.
Enable Secondary Network Port - is enabled by default. If only one network connection is required the Primary CobraNet network connection must be used. Disabling the secondary network port will disable the secondary Network connection and stop the Alarms reported due to the Secondary CobraNet connection not being available.
Secondary Power Supply Fault Triggers Alarm - Loss of voltage on the secondary 24V Auxiliary Power input connectors will trigger an Alarm. If no secondary 24V Auxiliary power is being used, disable the checkbox to suppress the Alarm being reported.
The Name and Description columns are used label each of the four VoIP lines for easy identification. Only Lines 1 and 2 will be available if the Number of VoIP Cards option is set to 'one'.
